500W High mast LED Flood Light for Sports Filed Area Lighting

FOB Reference Price:Get Latest Price
US $77-150 / Pieces | 1 Piece/Pieces (Min. Order)
Lamp Power(W):
500
Model Number:
KW-SF500W-D
Emitting Color:
Cold White White Warm White
Report Suspicious Activity
Overview
Quick Details
Light Source:
LED
Item Type:
High Mast Lights
LED Light Source:
LUMILEDS
Input Voltage(V):
AC100-305V
Lamp Luminous Flux(lm):
50000
Lamp Luminous Efficiency(lm/w):
130
CRI (Ra>):
80
Color Temperature(CCT):
Cool White
Beam Angle(°):
120
Working Temperature(℃):
-40 - 55
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP65
Certification:
CE, EMC, FCC, LVD, RoHS, SASO
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
TengSeaKai
Product Name:
LED High Mast Flood Light
Power Factor:
PF>0.95
CCT:
2700-7000K
Lighting Color:
Warm White/Daylight White/Cold White
Warranty:
3-5 Years
Dimension:
415*496mm
Weight:
9kg
Application:
outdoor flood lighting, high way /street lighting and the related
Mounting:
Standard adjustable bracket mount
Available Finishes:
Black
Supply Ability
Supply Ability:
10000 Piece/Pieces per Week LED high mast lighting
Packaging & Delivery
Packaging Details
1PCS/CTN
G.W.:10KG/CTN
MEAS:47*47*49CM
Port
Shenzhen

500W High mast LED Flood Light for Sports Filed   Area Lighting

Product Description

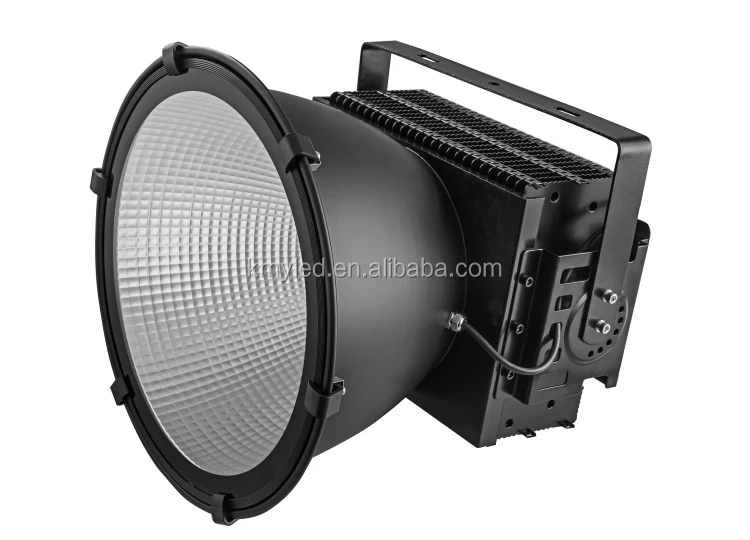

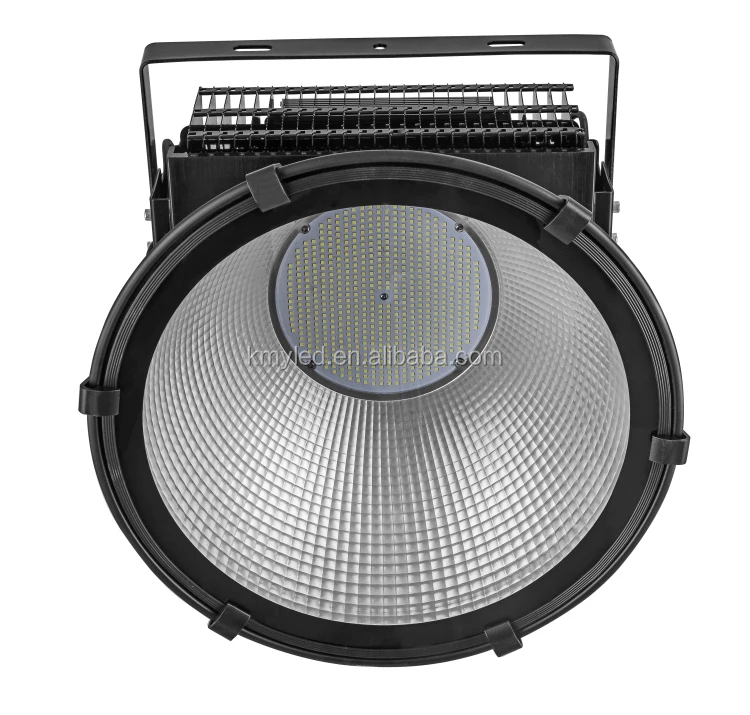

 IP65 Design LED High Mast luminaire suitable for high level installations such as industrial sides,docks, sports facilities and airports. With upto 60,000lumens of light, driven by high-performance Meanwell/TengSeaKai LED Driver.







Product Features:

  • Outstanding cooling technology and durable with rated life span of +50,000 hours.
  •  Single SMD light source, maximize the performance of each light source.
  • No UV or IR emissions
  •  Instant Illumination & Flicker free
  •  CE ,RoHS&FCC international standards
  • Environmentally friendly & fully recyclable: no mercury or other hazardous materials used.







Parameters:

General

ProtectionIP65
Rated Lifetime50,000Hrs
Anticorrosion gradeWF1
Storage Temperature-40℃ ~ +50℃
Working Temperature-40℃ ~ +55℃
Working Humidity20%~90%

Electrical

LED Power500W (±5%)
Input VoltageAC100~305V/ 50~60Hz (480V on request)
Power Factor(Typ.)PF≥0.95
Total Harmonic DistortionTHD<20%
Power Efficiency(Typ.)90%

Illuminative

LED Light SourceLumileds SMD3030 chips
LED Luminous Flux50000lm±10%
Luminous Efficacy130lm/W
Color Temperature2700K~7000K
Beam Angle120 degree
CRIRa>80
Lumen Maintenance>93% @20000h



Product Gallery



600W high bay light.jpg600W high mast light.jpg

light towers.jpg

The applications for LED high mast lighting where the illumination of extremely large areas such as transportation terminals, airports, high speed interchanges, prisons, ports, rail yards and freight terminals, other large, outdoor maintenance or storage yards and specialty roadway applications.
